Summary

Clockspring processors use attributes to evaluate dynamic values at runtime. Expression Language (EL) lets you reference and manipulate attributes inside processor properties. Understanding how EL works is essential for routing, building filenames, calling APIs, and transforming data.

Expression Language: what it does

Expression Language allows you to insert attribute values into processor properties using ${...} syntax.

At runtime, for each FlowFile:

• EL reads attributes

• Substitutes them into the property string

• Produces a final value used by the processor

If an attribute is missing, EL may resolve to an empty string, a default value, or cause validation/failure depending on the processor.

Attributes are always strings

EL operates purely on string values.

If you need numeric comparisons or conversions, EL provides functions to handle that, but the underlying values are still strings.

Examples:

• ${fileSize:gt(1000)}

• ${http.status.code:equals("200")}

• ${record.count:toNumber()}

Where EL is used

Expression Language appears in many processor properties, including:

• Routing rules

• Filenames and paths

• Database queries

• API endpoints

• Property-based lookups

• Cache keys

• SQL parameterization

• Record selection

Each property that supports EL shows a checkmark next to 'EL'

If a property supports ${} syntax, the processor evaluates EL per FlowFile.

How a property gets its final value

A processor property can contain:

• A literal value

• EL only

• A mix of literal text + EL

Example:
API endpoint:
https://api.example.com/customer/${customer.id}

Filename:
${filename:toUpper():append(".processed")}

Routing rule:
${recordCount:gt(0)}

Clockspring evaluates the EL fragments at runtime using the FlowFile’s attributes.

EL evaluation happens per FlowFile

This is a fundamental concept.

Even if a processor receives 1,000 FlowFiles at once:

• Each FlowFile resolves its own EL

• Values may differ depending on attributes

This allows two FlowFiles in the same processor to follow different routes or build different filenames.

When EL is not allowed

Some processor properties explicitly do not support EL.
In these cases:

• EL is not evaluated

• ${} is treated as literal text

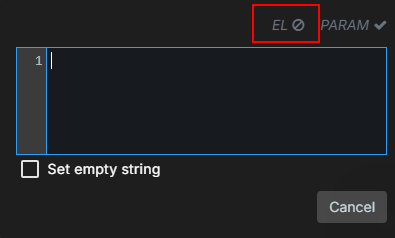

Each property that does not support EL shows a circle with a line going through it:

The processor UI always indicates whether a property allows EL.

Common mistakes

Missing attribute

${customer.id} resolves to nothing if customer.id doesn’t exist.
This often breaks URLs, filenames, or routing rules.

Assuming EL works everywhere

Some processors require literal values, not EL.

Overusing attributes for content

Do not store large JSON blobs or entire messages in attributes.
Extract only what you need.

Forgetting that everything is a string

Comparisons must be explicit:
${size:gt(100)} not ${size > 100}

Debugging EL issues

When something doesn’t evaluate correctly:

1. Check the FlowFile’s attributes

2. Confirm the attribute you expect actually exists

3. Confirm the property supports EL

4. Look at the resolved value in provenance (many processors record it)

5. Test EL fragments using the processor’s built-in EL tester (where available)

Quick rules to remember

• EL reads attributes and produces strings

• EL runs per FlowFile

• Not all properties support EL

• Missing attributes = missing values

• Use EL for dynamic behavior; use parameters for environment values
